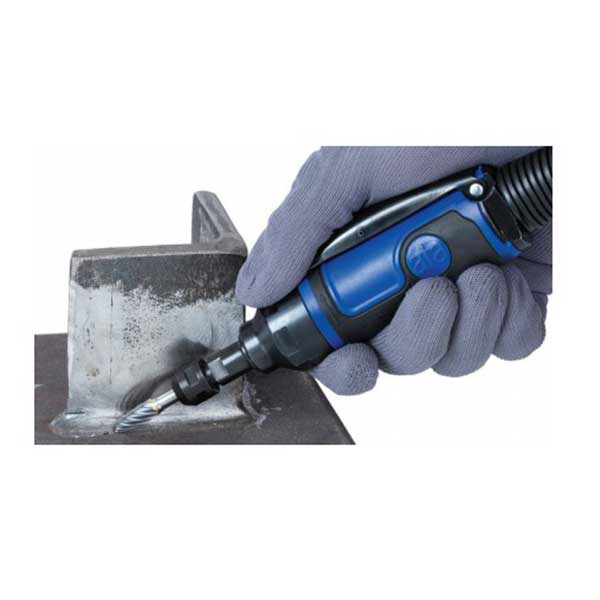

氣動直磨機
產品說明
SDM37L/SDM36LR/SDM30L/SDM30LR/SDM26L/SDM26LR
| Model | SDM37L | SDM37LR | SDM30L | SDM30LR | SDM26L | SDM26LR |
| Speed (rpm) | 37,000 | 37,000 | 30,000 | 30,000 | 25,000 | 25,000 |
| Power (hp) | 0.40 | 0.40 | 0.40 | 0.40 | 0.40 | 0.40 |
| Power (watt) | 300 | 300 | 300 | 300 | 300 | 300 |
| Weight (kg) | 0.52 | 0.52 | 0.52 | 0.52 | 0.52 | 0.52 |
| Weight (lb) | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
| Length (mm) | 167.00 | 154.00 | 167.00 | 151.00 | 167.00 | 154.00 |
| Height (mm) | 37.00 | 37.00 | 37.00 | 37.00 | 37.00 | 37.00 |
| Air Consumption (m3/min) | 0.57 | 0.57 | 0.57 | 0.57 | 0.57 | 0.57 |
| Air Consumption (cfm) | 20.13 | 20.13 | 20.13 | 20.13 | 20.13 | 20.13 |
| Noise Level (db.(A)) | 75 | 75 | 73 | 73 | 73 | 72 |
| Standard Collet Size (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
| Collet Options (mm) | 3 | 3 | 3 | 3 | 3 | 3 |
| Collet Type | CC Type | CC Type | CC Type | CC Type | CC Type | CC Type |
| Exhaust Type | Front | Front | Front | Front | Front | Front |
| Lever Type | Safety lever | Safety lever | Safety lever | Safety lever | Safety lever | Safety lever |
產品描述
FEATURES & BENEFITS
Excellent power to weight ratio
Governor design offering a range of speeds
Compact design suitable for light to medium deburring applications
Collet options to accommodate a range of shank mounted consumables
Moulded sleeve for improved ergonomics, operator comfort and insulation
-
